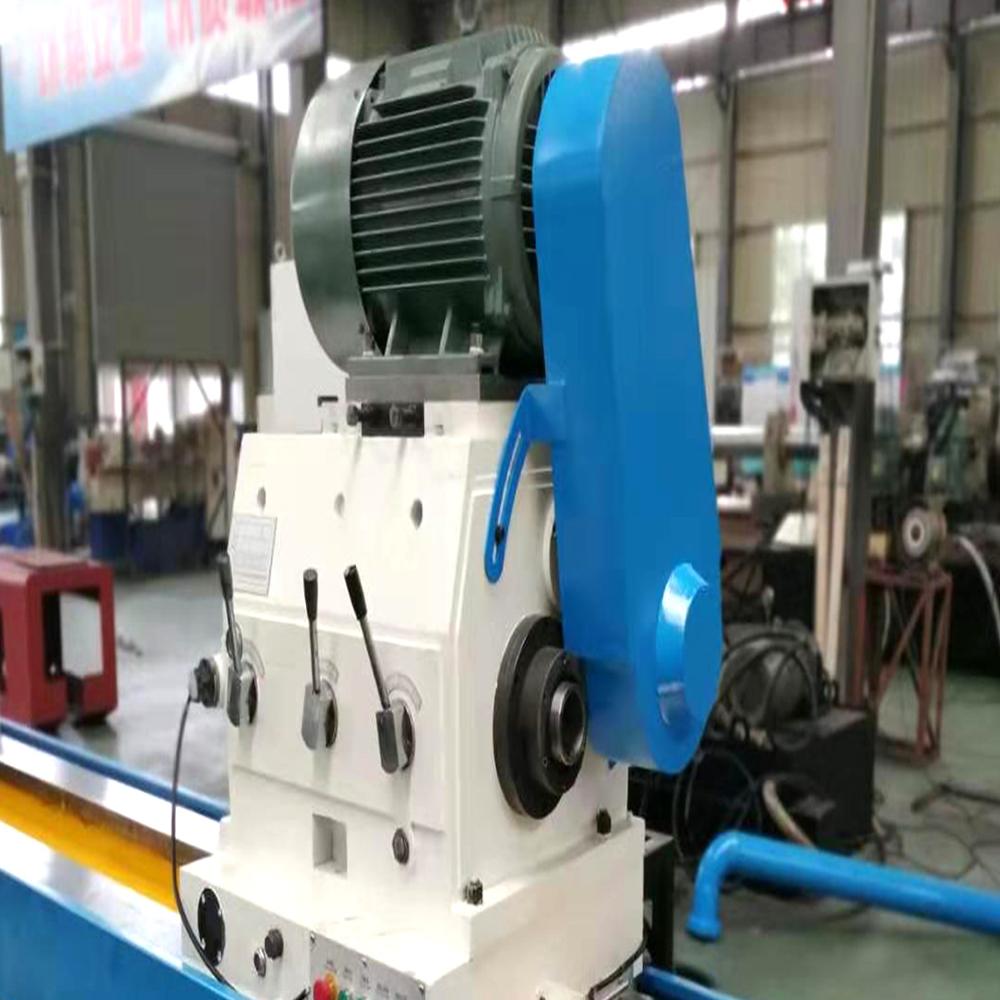

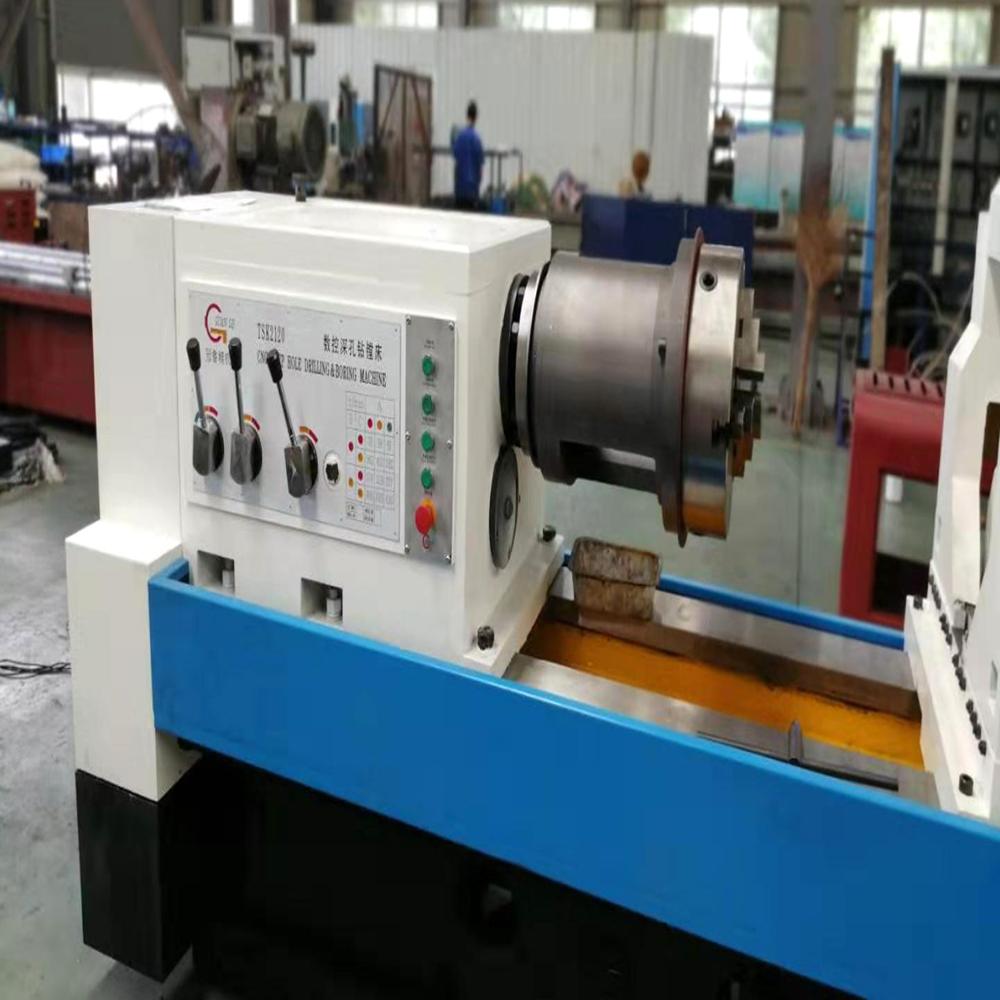

Twin screw hole drilling machine

Name: Twin screw hole drilling machine
Brand: DEZHOU GUANLU PRECISION MACHINERY CO., LTD.
Price: 46000.0 USD
Availability: InStock

Price 46000.0 USD ($)/ Set

Get a Price/Quote

MOQ : 1 Set

Twin screw hole drilling machine Trade Information

Minimum Order Quantity
1 Set

FOB Port
Tianjin

Supply Ability
10 Sets Per Year

Delivery Time
4 Months

Packaging Details
1. Before shipment, every part of machine will be painted with a layer of anti-rust and water-proof oil to prevent possible erosion during transportation. 2. A plastic cover to wrap around machine parts to enhance corrosion prevention. 3. Export standard fumigated wood cases are measured and specially made for packing. 4. Steel wire will be used to tighten and strengthen the packages inside container.

Certifications
CE ISO

About Twin screw hole drilling machine

Machine brief:Drilling diameter range

30 -100mm
Boring diameter range	35 - 200mm
Max. Hole drilling depth	5000mm
Max. Length of Workpiece	5000mm

Machine processing method:

BTA drilling method, the cutting chips are discharged to the rear end through the drill bar inner hole.
Hole boring process	Push boring method, the cutting chips are discharged to the front end through workpiece bottomhole
Infeed method	Tooling is rotary and infeeding, the workpiece is motionless.

Main components:

Machine base, worktable, and other basic units	HT300 iron, resin sand precision casting. Twice timing treatment, high rigidity and stability.
Workpiece clamping	with 2 sets V type block to clamp the workpiece.
X-axis, Z-axis guide rails	Double rectangular sliding rails, precision grinding treatment, aging treatment, quenching treatment.
Drill bar box	The spindle rotation is driven by the motor through belt and gear box Rotary speed range: 70-1000r/min(2-gear,speed stepless adjustable), Main motor power: 30kw(converter motor).
Tooling infeed system (Z-axis)	It adopts the structure that servo motor drives the T-slot leading screw through gear reducer to realize the speed stepless.
Drill bar rest	2 groups, supporting the drill bar.
Coolant system	To supply the oil for the tooling, consist of oil tank and 3 groups high press pumps.
Oil pressure head	Using for the cutting tool guiding, oil supplying, supporting. using ordinary motor to drive its axial movement; The oil pressure head spindle can be pushed out and retracted under the control of the hydraulic system; the oil pressure head can be automatically locked on the machine bed by the hydraulic press board.
T-slot worktable(X-axis)	The horizontal travel is 400mm; driven by servo motor, servo reducer and ball screw; Worktable dimension:2400X600mm; worktable loading capacity : 4tons. The worktable bed body and the tool bed body adopt divided structures, which are assembled together with high strength bolts and are positioned by the cone pin.
CNC system	GSK system

Efficient and Customizable Drilling Solution

Engineered for industrial use, the Twin Screw Hole Drilling Machine delivers high output and precision, with specifications adapted to meet customer needs. Its cast iron construction and automatic grade ensure longevity and minimal manual intervention, while the flexible dimensions make integration seamless in any facility.

Reliable Performance and Robust Warranty

This drilling machine comes with a dual warranty: 12 months from installation or 13 months from dispatch, whichever comes first, ensuring comprehensive protection. The powerful 50000-watt system supports continous operations, helping businesses minimize downtime and maintain high productivity.

FAQs of Twin screw hole drilling machine:

Q: How is the Twin Screw Hole Drilling Machine installed and set up?

A: Installation is handled by our experienced technicians or authorized service providers. The machines dimensions and weight are customized per customer requirements, and it operates with a direct electric connection at 440 volts and 50 Hz, making setup straightforward in standard industrial environments.

Q: What materials can this drilling machine process?

A: Constructed from cast iron, the machine is designed to handle tough industrial materials, suitable for high-frequency and demanding drilling applications across various sectors.

Q: When does the warranty coverage for the machine begin?

A: The warranty is valid for 12 months starting from the date of installation or up to 13 months from the date of dispatch, whichever occurs first, ensuring extended peace of mind regarding performance and service.

Q: Where can this machine be used?

A: The Twin Screw Hole Drilling Machine is ideal for industrial settings, including factories, manufacturing plants, and workshops that require robust and precise drilling operations. Its adaptability and high power make it suitable for large-scale production environments.

Q: What are the automatic features of this machine?

A: The machine includes advanced automation that controls drilling speed and feed, reducing manual labor and increasing consistency. This fosters higher productivity and safety during operation.

Q: How does the center distance specification benefit my production?

A: A 400 mm center distance allows for flexible and accurate positioning of drill holes, which is essential for manufacturing processes requiring precise alignment across multiple components.
