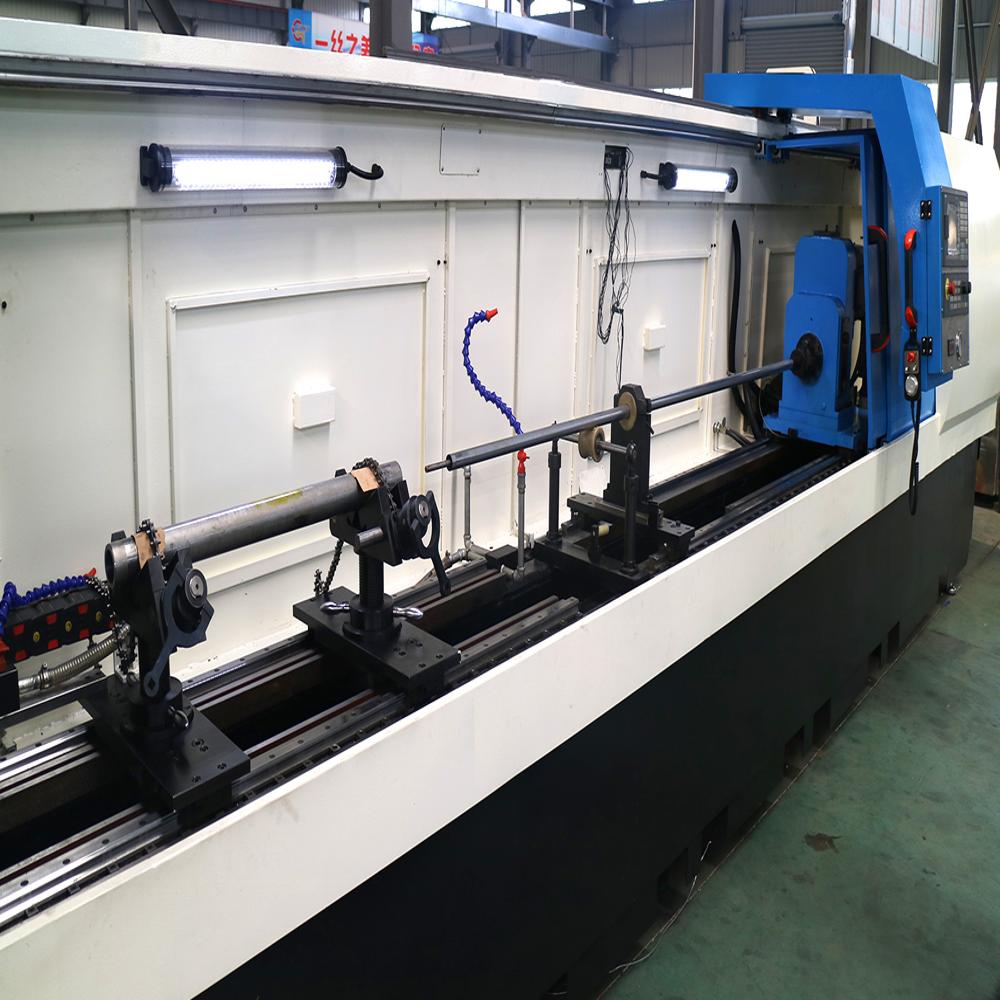

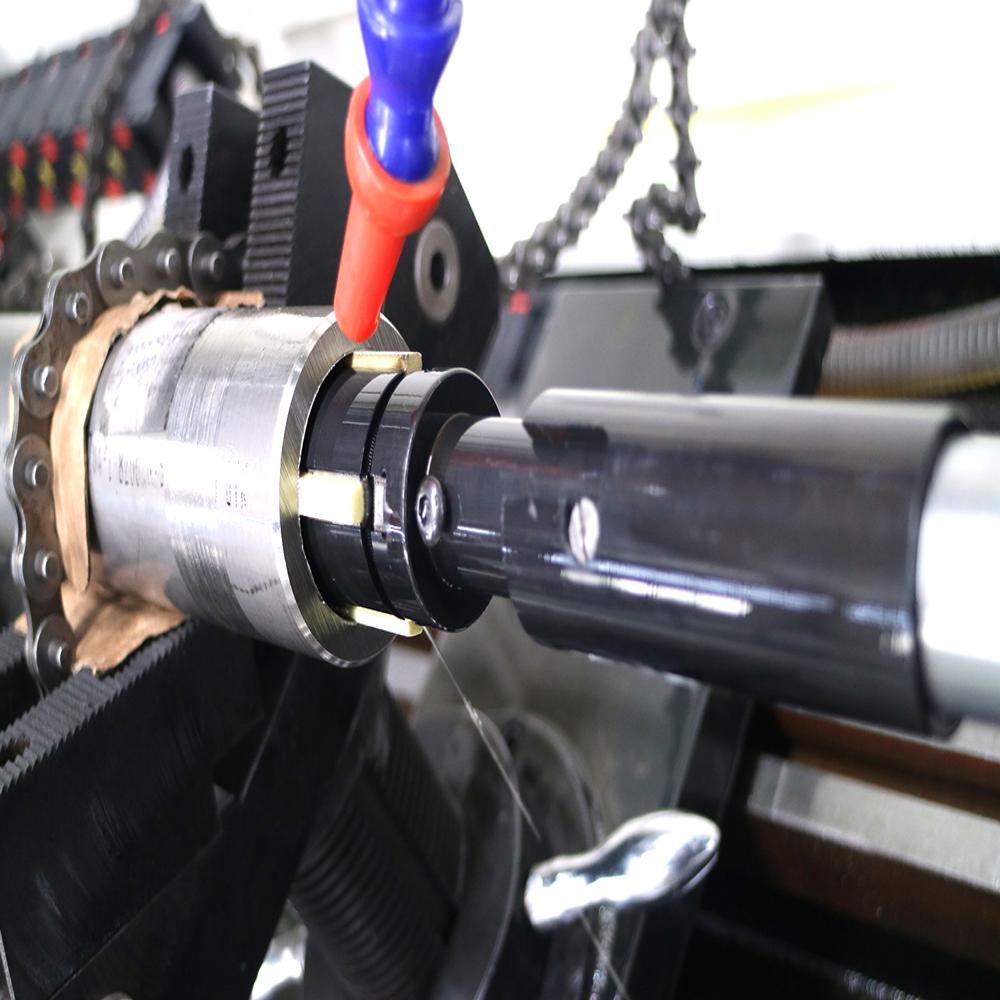

Deep Hole Honing Machine
Deep Hole Honing Machine
Deep Hole Honing Machine
Deep Hole Honing Machine
Deep Hole Honing Machine
Deep Hole Honing Machine

Deep Hole Honing Machine

MOQ : 1 Set

Deep Hole Honing Machine Specification

  • Product Type
  • Horizontal
  • Material
  • casted iron
  • Computerized
  • Yes
  • Automatic Grade
  • Semi-Automatic
  • CNC Or Not
  • CNC
  • Control System
  • Other
  • Center Distance
  • 400 Millimeter (mm)
  • Voltage
  • Customer requirements Watt (w)
  • Power
  • 50000 Watt (w)
  • Weight (kg)
  • Machine actual weight Kilograms (kg)
  • Dimension (L*W*H)
  • machine size Millimeter (mm)
  • Warranty
  • 12 months from the date of install or 13 months from the date of dispatch


Deep Hole Honing Machine Trade Information

  • Minimum Order Quantity
  • 1 Set
  • FOB Port
  • Tianjin
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 20 Sets Per Year
  • Delivery Time
  • 4 Months
  • Packaging Details
  • Standard exported sea-transporting method
  • Main Export Market(s)
  • Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia
  • Certifications
  • CE ISO


About Deep Hole Honing Machine

Deep Hole Honing Machine:

Machine model and name:
  • Name:Heavy duty casted bed deep hole honed machine
  • Model:2MK2115x2000mm
Machine specification :
  • Honing machine diameter range:150mm
  • Honing length Max:2000mm
  • Center height: carrier body guide surface to honing bar :200mm
  • Clamping jobs diameter range: 250mm
  • Honing box spindle speed range:0-500r/min stepless
  • Honing box spindle reciprocate speed range: 0-15m/min stepless
  • Honing box motor power:5.5KW inverter motor per
  • Honing head expand hydraulic system oil pump max pressure: 4Mpa
  • Coolant pump flow:50L/min
  • Coolant box volum:950L
  • Honing head expanding hydraulic system oil pump motor power:1.1KW
  • Coolant pump motor power:1KW
  • Reciprocate motor power 2.2kw
