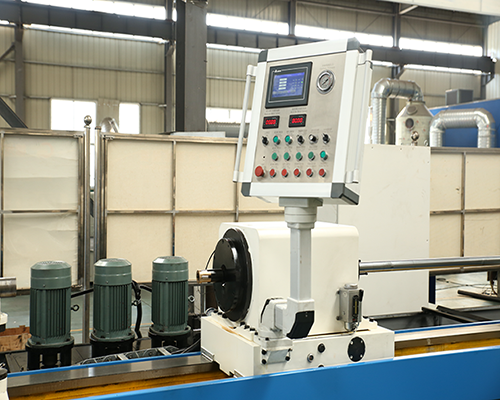

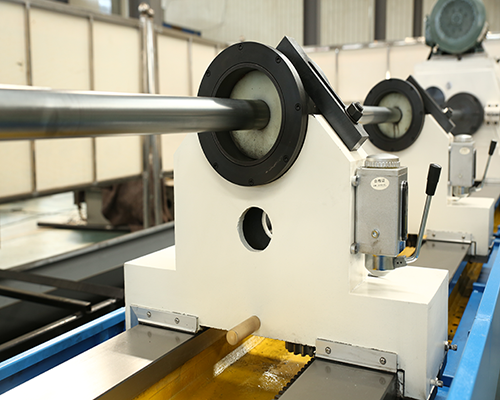

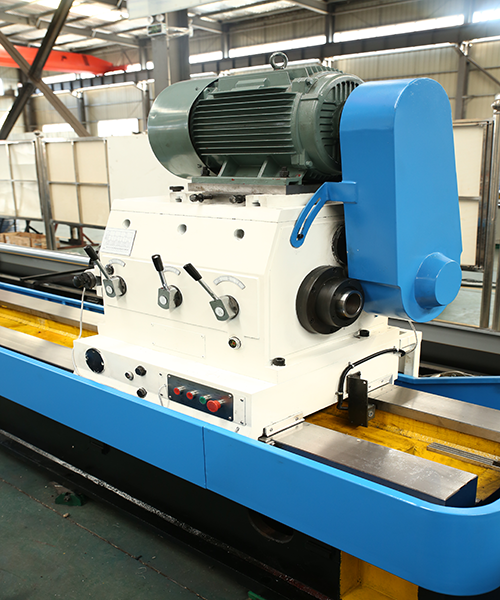

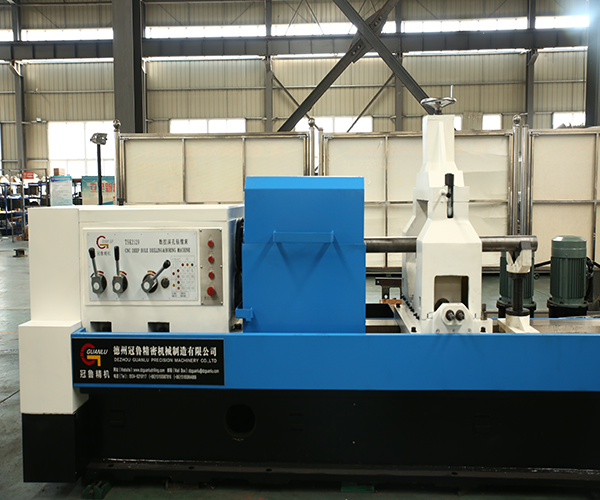

Deep Hole Drilling Machine

Name: Deep Hole Drilling Machine
Brand: DEZHOU GUANLU PRECISION MACHINERY CO., LTD.
Price: 65000.0 USD
Availability: InStock

Price 65000.0 USD ($)/ Set

Get a Price/Quote

MOQ : 1 Set

Deep Hole Drilling Machine Trade Information

Minimum Order Quantity
1 Set

Payment Terms
Cash in Advance (CID)

Supply Ability
15 Sets Per Year

Delivery Time
3 Months

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About Deep Hole Drilling Machine

Drilling Hole (BTA Drilling Method):

Cutting oil supply:Cutting oil is supplied to the tool through the gap between the oil injector, tool holder, and hole wall.
Chip and oil discharge:The cutting oil, along with the chips, is discharged through the inner hole of the tool holder.

Boring Hole:

Cutting oil supply:Cutting oil is supplied to the tool through the gap between the oil pressure head, tool holder, and hole wall.
Chip and oil discharge:The cutting oil, along with the chips, is discharged through the bottom hole of the workpiece.
Tool movement:During the machining process, the tool moves in the direction towards the headstock.

Machine main parameter:

Specification

Parameters

Remark

Working

capacity

Drill diameterrange

25100mm

Pull(Push)boring diameterrange

40200mm

Processing depth		3000m
Workpiece Orange		60400mm
Workpiecelengthrange		500-3000mm
Machine performance	Zaxis (Drill box feed)	Feed speedrange	51000mm/min
		Rapidmove speed	2000mm/min
		Servomotor torque/power	20Nm/2.5KW
		Max.Feed force	60KN
	Xaxis (Oil pressurehead movement)	Rapidmove speed	2000mm/min
		Servomotor torque	20Nm/2.5KW
		Max. tighteningforce	60KN
	Drillbox	Rotation speedrange	301000r/min
		Motorpower	37KW	Servo spindle motor
		Gears	Manual 3-gears,stepless within gear
	Headstock	Rotation speedrange	301000r/min
		Motorpower	37KW	Servo spindle motor
		Gears	Manual 3-gears,stepless within gear
		ChuckOD	400mm	Manual three jaw
	Others	Machine total power	112KW
		Loading weight	About30T
		Floor size	12m3.3m
		Width of guiderail	600mm
		Height from spindlecenter to guiderail	400mm

Coolant system	Max.cutter bar diameter	160mm
	Max.pressure	2.5MPa
	Max. flow	400L/min
	Oil tank volume	4400L

Machine main configurations list:

Mainpurchasedpartsname	Manufacturer
Control system	FANUC
Xaxisused servomotor	FANUC
Zaxisused servomotor	FANUC
Mainmotor ofheadstock	MK
Mainmotor ofdrillbox	MK
Coolantpumpusedmotor	Chinese famousbrand
Main electric components	SCHNEIDER or SIEMENS
Spindlebearings of drillbox	Havaro
Spindlebearings ofheadstock	Havaro
Coolantpump	Chinese famous brand
Rack	Taiwan YYC
Chuck of headstock	Chinese famous brand

Machine standard parts:

No.	Name	QTY
1	Machinebd	1set
2	Drillbox	1set
3	Headstock	1set
4	Three-jaw manualchuckofheadstock	1set
5	Workpiece carrier	2sets
6	Oilpressurehead	1set

Precision Engineering for Industrial Demands

Our Deep Hole Drilling Machine is crafted to meet the rigorous demands of modern industries, delivering accurate and efficient drilling for critical applications. Its automatic operation streamlines workflow, while its high-quality build ensures durability and safety in every operation. Suitable for heavy-duty environments, it remains a preferred choice for professionals aiming for excellence.

Versatile Performance Across Multiple Sectors

From producers to service providers, our machine adapts to varied industrial needs. Designed for seamless integration with export and fabrication processes, it offers reliability whether youre manufacturing components or supplying traders. Its robust electric configuration suits large-scale operations, making it a solution for businesses looking to enhance throughput.

FAQs of Deep Hole Drilling Machine:

Q: How does the automatic grade feature of the Deep Hole Drilling Machine benefit industrial operations?

A: The automatic grade feature streamlines the drilling process, reducing manual intervention and ensuring consistent, precise results in high-output industrial environments, thereby enhancing productivity.

Q: What makes this machine suitable for high-quality deep hole drilling applications?

A: Constructed with premium metal and operating at a frequency of 50 Hertz and 440 Volt electric power, the machine maintains accuracy and stability, crucial for achieving high-quality drilling performance in industrial use.

Q: When is the optimal time to use this machine in a production line?

A: The Deep Hole Drilling Machine is ideally employed during stages requiring precise and deep drilling of metal components, especially in the initial or mid-phases of fabrication and manufacturing processes.

Q: Where can the Deep Hole Drilling Machine be installed and utilized effectively?

A: This machine is designed for installation in industrial facilities, including factories involved in metalworking, component manufacturing, and fabrication, particularly where high-volume, reliable drilling is essential.

Q: What is the process for operating the machine with its automatic features?

A: To operate, simply connect the machine to a suitable electric power source, set required parameters for drilling depth and diameter, and initiate the automatic mode, which handles most functions with minimal manual oversight.

Q: How does using this machine improve workflow for exporters and suppliers?

A: By automating deep hole drilling tasks, exporters and suppliers can meet large-scale production demands efficiently, ensuring timely delivery and consistent quality that meet international standards.

Q: What are the main benefits of this Deep Hole Drilling Machine for industrial users in China?

A: Industrial users benefit from enhanced accuracy, reduced downtime, increased throughput, and robust performancetraits essential for maintaining competitive advantage in Chinas dynamic manufacturing landscape.
