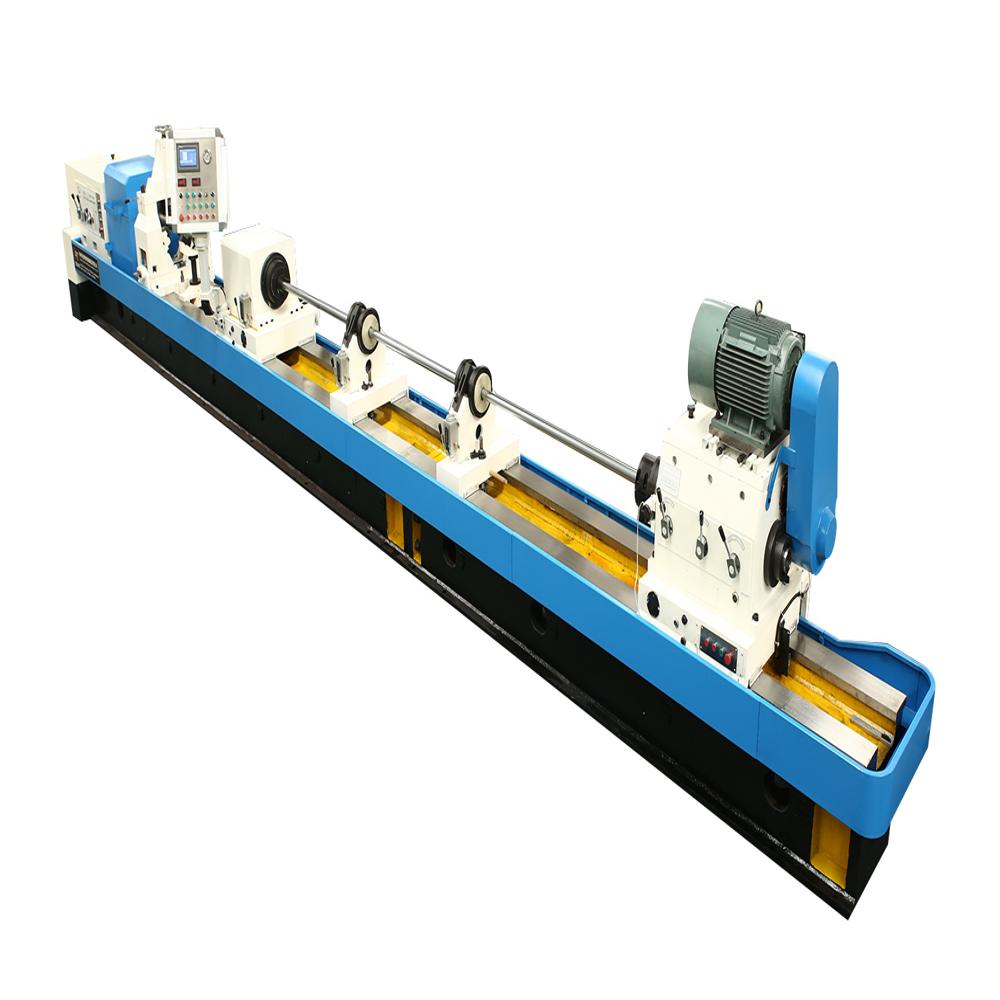

BTA Deep Hole Drilling Machine

Name: BTA Deep Hole Drilling Machine
Brand: DEZHOU GUANLU PRECISION MACHINERY CO., LTD.
Price: 60000.0 USD
Availability: InStock

Price 60000.0 USD ($)/ Set

Get a Price/Quote

MOQ : 1 Set

BTA Deep Hole Drilling Machine Trade Information

Minimum Order Quantity
1 Set

FOB Port
Tianjin , Qingdao

Supply Ability
10 Sets Per Year

Delivery Time
30 Months

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Cover by plastic film and fasten by iron wires

Main Export Market(s)
South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America, North America

Certifications
CE issued by TUV , ISO9001

About BTA Deep Hole Drilling Machine

This machine is suitable for drilling and boring cylindrical workpieces, with functions of drilling , boring , pull boring, rolling and trepanning .When drilling , it adopts chips internal removal method (BTA method),it means the cutting oil supplied by oil pressure head ,through cutting area,remove the cutting chips from the inner hole of drill bar to the chips pot at back of machine bed ; It adopt push boring method, to ensure the roundness and cylindricity of finished holes.

Specification		Technical data
Specification		Tsk2136x7000mm
Capacity	Max. Boring diameter	360mm
	Drill hole diameter range	30-100mm
	Max. Boring depth	7000mm
	Workpiece clamp diameter range	100-500mm
Drill box	Rotary speed range	40-500r/min, 3-gears ,12 steps
Drill box	Spindle motor	30kw
Spindle	Height from spindle center to bed	500mm
	Spindle bore diameter	75mm
	Taper of spindle bore	85mm1:20
	Range of spindle speed	61-1000r/min
Infeeds	Infeed speed range	5-1600mm/min
Motor	Main motor power	30kw
	Oil pressure head motor power	4.5kw, servo motor
	Infeed motor power	4.5kw
	Coolant pump motor power	5.5kwx2+11kw
Others	Rated pressure of coolantsystem	2.5mpa
	Flow of coolantsystem	Max. 800l/min
	Rated working pressure of hydraulic system	6.3mpa
