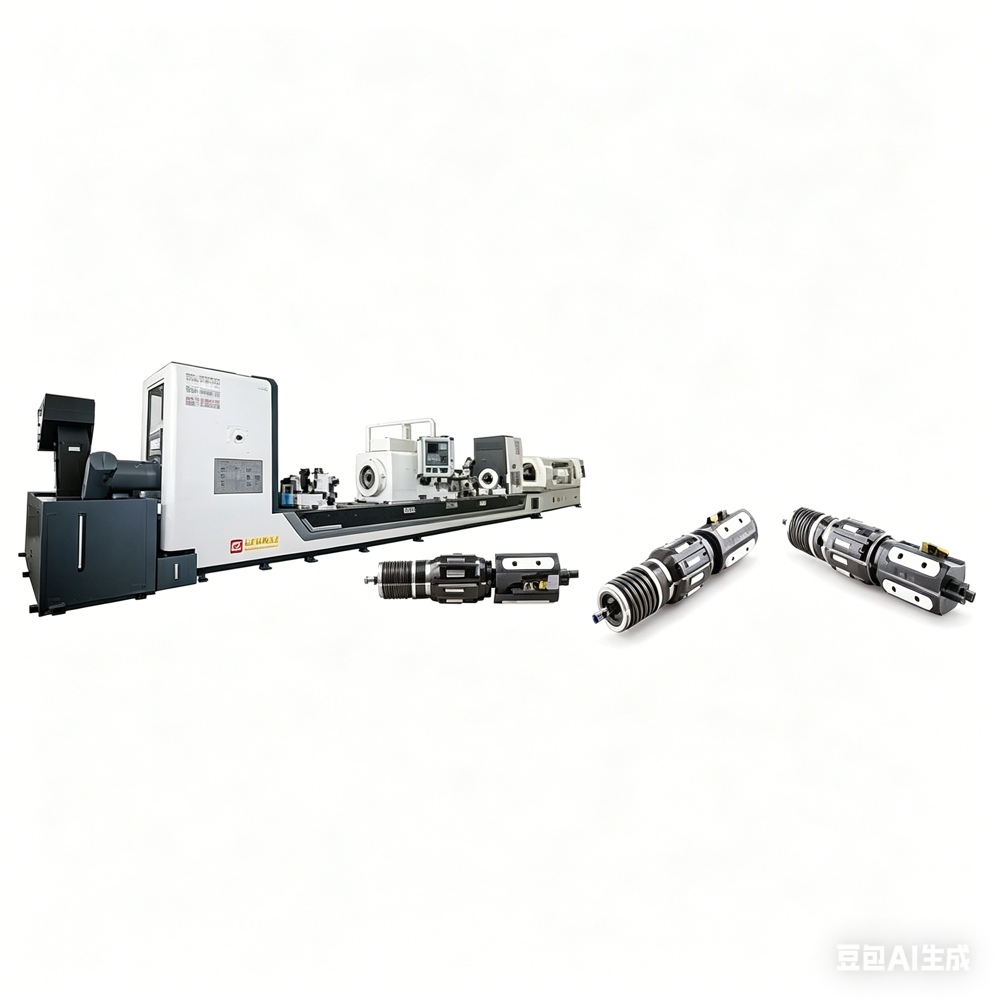

Double Spindle Deep Hole Skiving Roller Burnishing Machine

Price 1.0 USD ($)/ Set

Get a Price/Quote

MOQ : 1 Set

Double Spindle Deep Hole Skiving Roller Burnishing Machine Specification

CNC Or Not
CNC

Warranty

About Double Spindle Deep Hole Skiving Roller Burnishing Machine

1. Machine overview

Our deep hole skiving roller burnishing machine machine is an alternative to conventional deep hole boring machine. By combining rough boring, precision boring and roller burnishing into a single integrated process, this machine completes rough and fine boring during forward feeding, and performs burnishing during retraction, showing significant advantages:

Ultra-high efficiency, fewer processes. Completes all steps in one pass, drastically cutting cycle time.
Superior accuracy & surface finish. IT8 dimensional tolerance, with surface roughness down to Ra 0.050.4 m.
Enhanced surface hardness. Burnishing improves the workpiece surface hardness by more than 50%, boosting wear resistance and service life.
Eco-friendly & labor-saving operation. Low noise, zero pollution, and minimal manual intervention.

The machine has two spindles, capable of machining two workpieces a time. The machine bed is manufactured by high quality cast iron, with strong rigidity and strong stability. It is also equipped with large capacity automatic chip removal machine, drum magnetic separator, collect automatically iron intoattle box, cooling fluid can be recycled by precision filtration. The optional CNC systems such as SIEMENS, GSK, FANUC.

2. Main Parameters

Category	Item	Parameter
Working scope	Boring hole diameter range	3055mm
	Workpiece length	500mm
Boring bar box spindle parameters	Center height	> 300mm
	The spindle speed range	601800 r/min (AC frequency conversion stepless speed regulation)
	Output shaft torque	500 Nm
Feed parameters	Feed speed range	52000 mm/min (stepless)
	Plate moving fast	4 m/min
	Locate the length	00.5 m
Machining accuracy	Workpiece surface roughness of boring	Ra 3.2 m
	Workpiece surface roughness of rolling	Ra 0.8 m
	Workpiece machining straightness	0.05 / 500 mm
	Workpiece machining roundness	0.029 / 200 mm
Motor capacity	Boring bar motor power	30 kW AC servo motor
	Feed motor	5.5 kW AC servo motor
	Hydraulic pump station motor	1.5 kW AC motor
	Output cooling pump motor power	7.5 kW (one set)
	Automatic chip removal motor power	1.5 kW (one set)
	Magnetic separator motor power	0.75 kW (one set)
	Centralized lubrication motor	0.75 kW (one set)
Others	Head of the biggest pre-tightening force for the workpiece	30 kN
	The cooling system flow	100 L/min
	Cooling system rated pressure	2.5 MPa
	Magnetic separator flow	200 L/min
