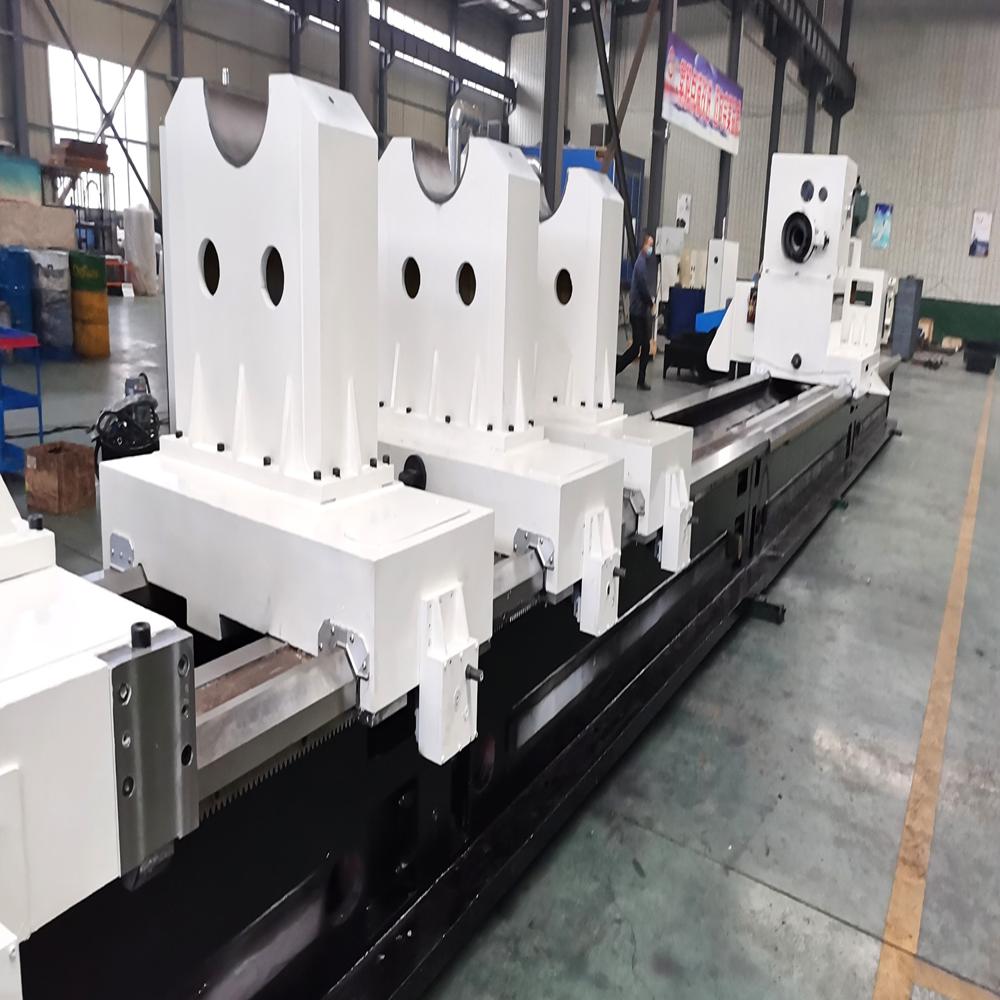

BTA Drilling Machine for Tube Sheet

Name: BTA Drilling Machine for Tube Sheet
Brand: DEZHOU GUANLU PRECISION MACHINERY CO., LTD.
Price: 1.0 USD
Availability: InStock

Price 1.0 USD ($)/ Set

Get a Price/Quote

MOQ : 1 Set

BTA Drilling Machine for Tube Sheet Specification

Cutting Speed
50-200 mm/min

Application
Tube Sheet Drilling in Heat Exchanger, Boiler, Condenser Manufacturing

Noise Level
<80 dB

Tool Type
BTA Tooling System

Power Source
Electric

Spindle Speed
50-800 RPM (Variable)

Product Type
BTA Drilling Machine for Tube Sheet

Material
High Grade Steel Structure

Computerized
Yes

Automatic Grade
Automatic

Control System
CNC/PLC Based

Drive Type
Hydraulic & Electric

Voltage
380V/415V AC

Weight (kg)
3500 - 5000 kg (Varies by Model)

Dimension (L*W*H)
Approx. 3500 x 1800 x 2100 mm

Capacity
Up to 100 mm Dia, 1500 mm Depth

Feature
High Precision, Rigid Construction, Efficient Chip Removal, Coolant Supply System

Color
Blue/White/Custom

Safety Features
Overload Protection, Emergency Stop Switch

Spindle Motor Power
12 kW to 30 kW

Table Type
Heavy Duty Rotary Table

Drilling Accuracy
±0.02 mm

Workpiece Diameter Range
600 mm to 3500 mm

Lubrication System
Automatic Centralized Lubrication

Tool Change System
Manual/Automatic (Optional)

Display Interface
Touch Screen HMI Panel

Chip Conveyor
Automatic Chip Conveying System

Max Table Load
Up to 8000 kg

Coolant System
Integrated High Pressure Coolant Supply

BTA Drilling Machine for Tube Sheet Trade Information

Minimum Order Quantity
1 Set

Supply Ability
30 Sets, Set Per Year

Delivery Time
4 Months

About BTA Drilling Machine for Tube Sheet

Machine bed:The guide rail adopts double flat guide rail design, and the machine bed guide rail width is 800mm. The material adopts high quality cast iron HT300. Artificial aging treatment, medium frequency quenching treatment on the surface of guide rail, quenching depth 2-3 mm, quenching hardness HRC45-50. High precision and good abrasion resistance. Precision rack drive bracket is installed in the middle of the guide rail ,It is used for infeeding and rapid movement of the bracket.

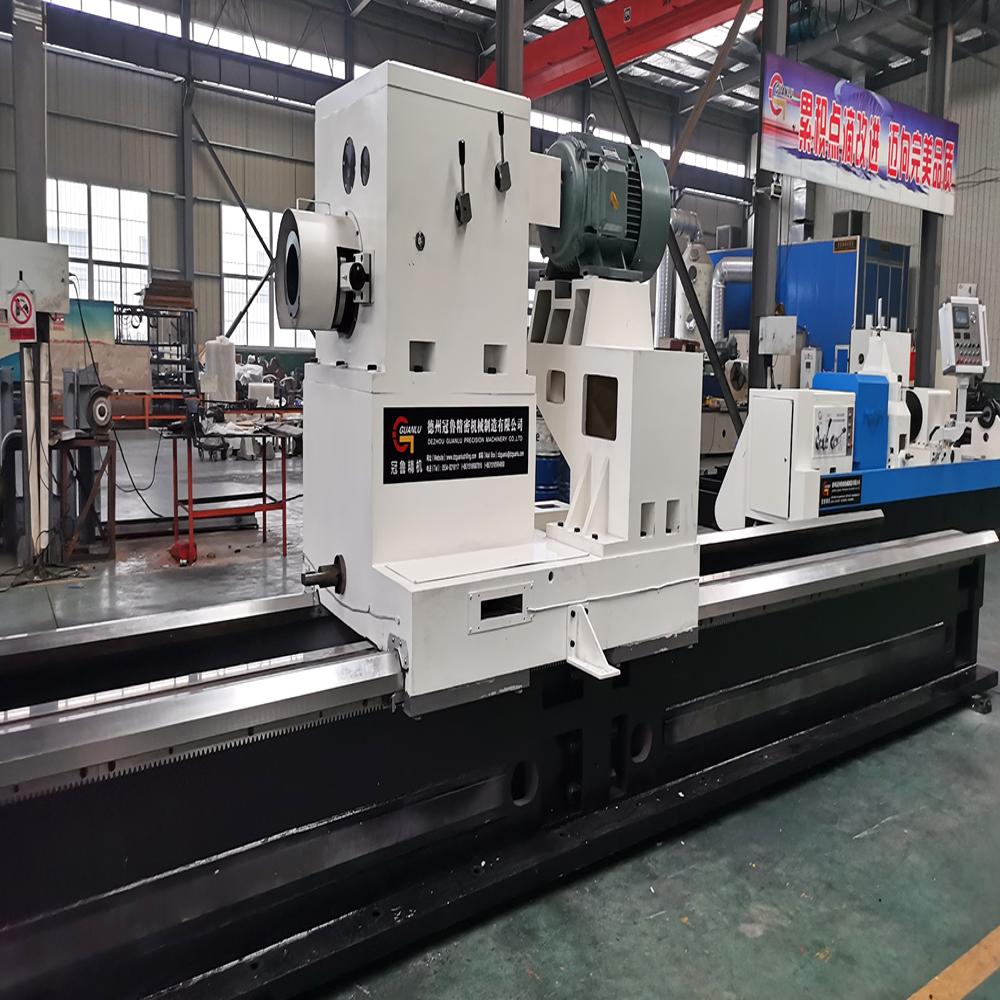

Headstock and chuck : Headstock 21grade speed regulation, speed range 3.15-315 r/min. The box body is made of high quality cast iron with artificial aging. All gears are made of high quality medium carbon steel or low carbon alloy steel with quenching hardness of about HRC48.Grinding process to improve working accuracy and wear resistance.A button station on the front side of the headstock can control the forward movement and stop of the spindle.The headstock is fixed structure, the main motor is fixed on the bed body, the transmission rigidity is good, and the aseismic property is good.

The cage type chuck body is mainly fixed on the front end of the spindle, and a 630mm three jaw chuck is mounted on the chuck body.

Items			Parameters	Remark
Working capacity	Drilling diameter range		50 x 20mm
	Boring diameter range		50x 500mm
	Trepanning diameter range		100 x 250mm
	Max. Boring depth		5m
	Roller center frame clamping diameter range		100 x 500mm
	Main spindle	Center height (spindle center to machine flat guide rail)	625mm
		Spindle rotary speed range	3.15 to 315r/min	21grades
Machine capability	Drill box	Rotary speed range	601000r/min	12 grades
		Drill box motor	30KW
		Spindle front end taper	140#
	Carriage infeed speed range		5-1000mm/min	Stepless
	Carriage rapid traverse rate		1m/min
	Cutter tool infeed servo motor power		7.5kW
	Oil pressure head servo motor power		7.5kW
Coolant system	Cooling pump motor power		7.5kw*3
	Rated Pressure		2.5MPa
	Flow		200/500/800L/min
Others	Machine totally weight		Roughly 33 T
	Machine Max.Loading weight		10T

FAQ:

Q1. What is your terms of packing?

A: Generally, we pack our machinein export standardpacking.Export sea-worthy packing,naked packed,fasten by iron wire and cover by plastic. If you have a special request,we can do it according to your requirements,we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T,irrevocable L/C at sight.

Advanced Tube Sheet Drilling

Designed for heat exchanger, boiler, and condenser manufacturing, this BTA Drilling Machine ensures high precision with its rigid construction and efficient cooling and chip removal systems. Its automated features and heavy-duty performance enable reliable operation and consistent results across large workpieces.

Integrated Automation & Safety

The machine integrates CNC/PLC-based control with touch screen HMI, centralized lubrication, overload protection, and an emergency stop. These automated safety and lubrication systems minimize downtime and maximize operational safety, meeting the rigorous standards of modern tube sheet drilling.

FAQs of BTA Drilling Machine for Tube Sheet:

Q: How does the heavy-duty rotary table enhance the drilling process for large tube sheets?

A: The heavy-duty rotary table supports workpieces up to 8000 kg and provides stable rotation, enabling precise alignment and consistent drilling, especially vital for large-diameter tube sheets ranging from 600 mm to 3500 mm.

Q: What are the benefits of the integrated high-pressure coolant supply system in this BTA Drilling Machine?

A: The high-pressure coolant system optimizes heat dissipation and improves cutting tool life by flushing chips efficiently from the drilling site, thus maintaining drilling accuracy and enhancing overall productivity.

Q: When is automatic chip conveying most advantageous in tube sheet drilling operations?

A: Automatic chip conveying is essential during continuous high-volume drilling, as it removes chips quickly from the workspace, reduces manual intervention, and helps maintain smooth operations and clean working conditions.

Q: Where is this BTA Drilling Machine typically used?

A: This machine is primarily utilized in manufacturing environments such as heat exchanger, boiler, and condenser fabrication facilities, supporting tube sheet production in industries requiring high precision and robust drilling capabilities.

Q: What process controls ensure high drilling accuracy and repeatability?

A: The CNC/PLC control system, combined with a touch screen HMI and automated lubrication, guarantees drilling accuracy of 0.02 mm by continuously monitoring and adjusting operational parameters throughout each cycle.

Q: How can operators benefit from the touch screen HMI panel?

A: Operators benefit from intuitive monitoring and control via the touch screen HMI panel, which simplifies setup, troubleshooting, and real-time process adjustments, contributing to efficient and error-free machine operation.

Q: What usage flexibility does the tool change system provide?

A: The tool change system, offered in manual or automatic configurations, accommodates different production requirements, allowing quick adaptation to various tube sheet and drill sizes for increased production versatility.
