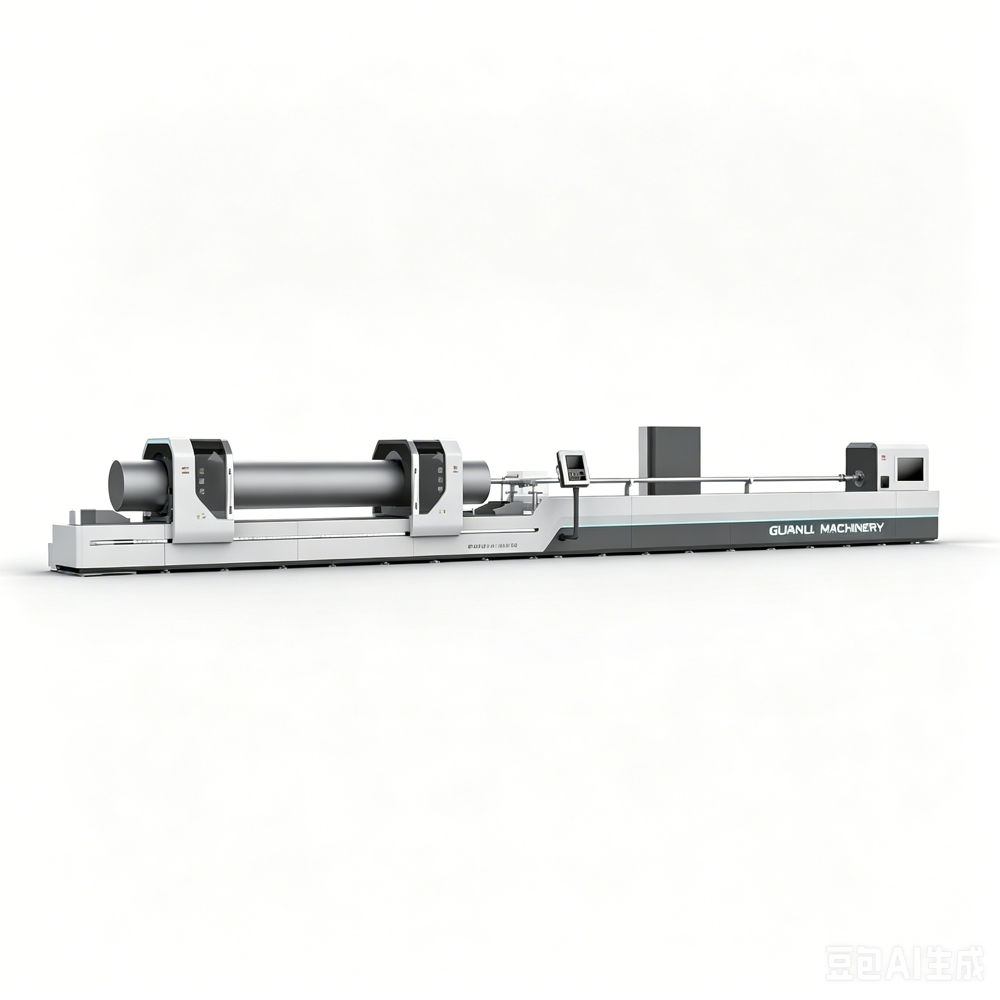

Deep hole honing machine

About Deep hole honing machine

1.      Machine Overview

Processing Range

Honing diameter range: 425mm

Max processing depth: 1000mm

Max workpiece length: 1000mm

Processing Accuracy

Bore diameter accuracy: IT7~IT8

Surface roughness: Ra 0.2~Ra 0.4 m
2. Main Features

The machine bed adopts super cast iron, featuring excellent precision retention and structural stability.

Square rolling linear guides are adopted for workpiece and tool movement, with high precision and great rigidity.

The servo spindle motor drives spindle rotation via a reduction mechanism, enabling stepless speed regulation of the spindle.

The servo feed motor drives the rack-and-pinion structure through a reducer, so that the tool moves forward and backward at the set speed.

The mechanical structure is driven by servo motor to control the expansion and contraction of the honing head.

 The machine is equipped with simple safety protection cover.

Cutting fluid supply system: equipped with magnetic filter and paper bag filtration device.

Adopt PLC control system.

Electric cabinet equipped with air conditioner.
3. Main parameters of the machine

Machining Diameter Range: 4~25mm
Max. Machining Depth:1000mm

Workpiece Outer Diameter Range: 12~70mm
Max. Length-to-Diameter Ratio: 65:1
Z-Axis: Feed Speed Range:1~15m/min;Stepless;Feed Motor Power:2.8KW
Honing box: Rotary Speed Range:5~500r/min, Stepless;
Main Motor Power:1.1KW;Servo Spindle Motor
Cooling System:
Max. Flow Rate: 38L/min
Oil Tank Volume: 300L
