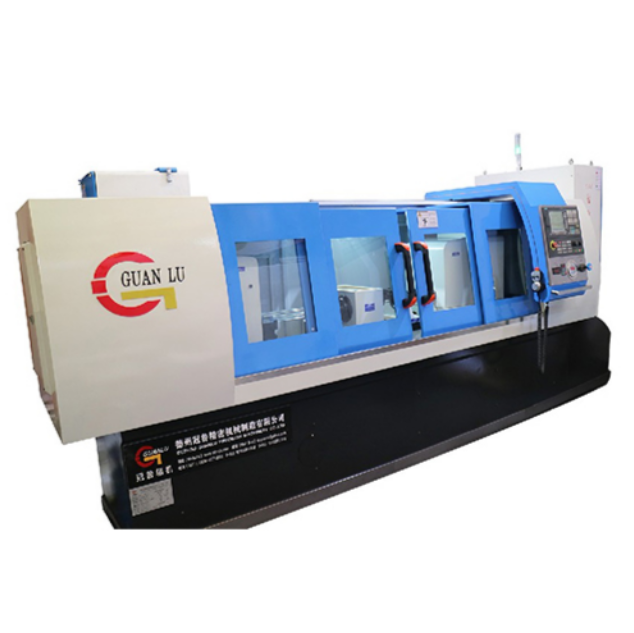

Deep hole gun drilling machine

Price 1.0 USD ($)/ Set

Get a Price/Quote

MOQ : 1 Set

Deep hole gun drilling machine Specification

Material
cast iron

Computerized
Yes

Automatic Grade
Automatic

CNC Or Not
CNC

About Deep hole gun drilling machine

1. Drilling method :

Gun drilling mode: Internal oil supply and external chips discharge; The cutting oil reaches the cutting edge through the rotary joint mounted on rear end of drill box spindle , inner hole of drill box spindle and inner hole of drill bar, and carries the cutting chips discharging into the guide frame through the V-shaped groove outside the drill bar, and then enters the chips conveyor.

2. Machine tool processing range

Gun drill range: 420 mm

Maximum drilling depth: 2000 mm

Workpiece OD range: 1570 mm

Customization available.

3. Main parameters:

Z axis (Cutting tool feed)	Feed speed range:5~500mm/min Rapid move speed:4000mm/min Servo Motor: 11Nm/1.75KW
Z axis (Cutting tool feed)	Ball linear guide rail Ball screw for transmission:40mm Max. Feeding force: 12000N
Drill box (cutting tool rotate)	Max. Rotation speed:5000r/min;stepless Main motor:7.5KW,Stepless
Headstock	Rotation speed:50r/min, fixed Motor power:1.5KW Transmission type:Synchronous belt transmission Guide rail form:Ball linear guide rail Move mode:manual
Coolant system	Max. Pressure:10MPa Max. flow:100L/min Oil pump / Motor:1set gear pump/7.5KW Variable frequency motor Oil tank volume:1000L Filtering form:Drum-type paper filter,100L/min,20m Cooling capacity of oil chiller:5KW
Machine total power (about)	24KW
Machine total weight(about)	10T
Machine floor dimension	8m3.5m
Workpieces clamping	Install cone disk on the headstock and guide frame; The hydraulic system controls the axial movement of the headstock; Using chamfers at both ends of the workpiece, automatically tighten and position the workpiece; The centre frame is set in the middle of the workpiece.
Bed	The bed body is cast with resin sand, and after casting, it is normalized. The bed adopts a split structure, which is assembled together by high-strength bolts and positioned by taper pins. Ball linear guide rail, for the movement of headstock and drill box.

Bed	The bed body is cast with resin sand, and after casting, it is normalized. The bed adopts a split structure, which is assembled together by high-strength bolts and positioned by taper pins. Ball linear guide rail, for the movement of headstock and drill box.
